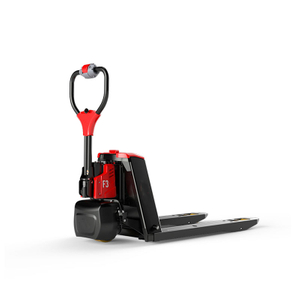

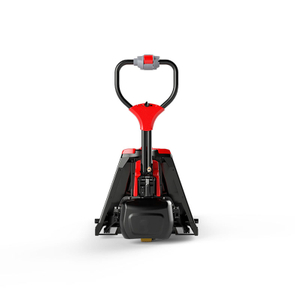

ELECTRIC PALLET TRUCK FEATURE
1、Light service weight, decent capac -ity, suitable for anywhere a hand pallet truck could be used:
130kg Ultra-light service weight，1200kg high rated capacity, come and go freely in small working space with 1390mm turning radius.
2、CAN-BUS system: CAN-BUS system simplifies operation/maintenance level, improves system reliability.
3、Integrated design: Innovative designed sealed hydraulic unit, low noise, easy maintenance.
4、Non-contact limit switch design: New non-contact limit switch design improves the reliability.
5、Safety: Convenient emergency stop switch, strong driving wheel cover, solid battery clip, ensure safety and reliability

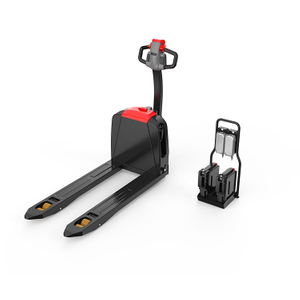

6、Battery: 4.7kg battery replacement, optional standby battery extend run time.
7、Integrated handle design: New design of integral handle head, easy to access all control buttons.
8、Robust frame design: New frame design, light service weight, high strength.
9、Innovative key switch design: The key switch design is integrated with u-disk function.
10、Easy maintenance: Maintenance free truck design for end users to trouble shooting and replace failure part by simple instruction, free labor cost. SMART panel reflect operation and trou -ble shooting status.
PRODUCT PARAMETERS
Drive unit | Electrics | |
Operator type | Pedestrian | |
rated capacity | Kg | 1200 |
Load center distance | mm | 600 |
Wheelbase | mm | 1190(1120) |
Service weight(include battery) | kg | 130 |
Load distance | mm | 950(880) |
Type of drive control | DC | |
Steering design | Mechanical | |
Battery voltage/nominal capacity | V/ Ah | 24/20 |
Service brake type | Electromagnetic | |
Lift height | mm | 115 |
Turning radius | mm | 1390 |
ELECTRIC PALLET TRUCK TIPS
Applicable environment
Due to the special nature of lithium batteries, please use this product between -10 ℃ and 45 ℃
The large wheel version of this electric pallet truck can climb below 4% when fully loaded and 10% when unloaded. The small wheel can climb to a gentle slope of less than 2% under full load, and 8% without load. To protect the motor, please avoid climbing hills for a long time
Operate only under dry conditions.
